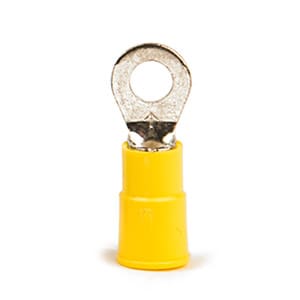

Vinyl (PVC) Insulated Ring Terminals
$14.70 – $199.00
These ring terminals are insulated with Polyvinyl Chloride (PVC) offering a high quality electrical resistance. The one piece design allows for maximum electrical conductivity and the open end allows for the user to see the wires inside both before and after crimping. These PVC insulated ring terminals have an environmental operating temperature of -40°F to 221°F (-40°C to 105°C) which allows for use in a wide variety of environments.
| SKU | Color | Wire Range | Stud Size | Pkg Contains | Price | Qty |
|---|---|---|---|---|---|---|
| RV-18-6 | Red | 22-18 AWG | 6 | 100/pkg | $14.70 | |
| RV-18-6 | Red | 22-18 AWG | 6 | 1000/pkg | $117.50 | |
| RV-18-8 | Red | 22-18 AWG | 8 | 100/pkg | $14.70 | |
| RV-18-8 | Red | 22-18 AWG | 8 | 1000/pkg | $132.20 | |
| RV-18-10 | Red | 22-18 AWG | 10 | 100/pkg | $14.70 | |
| RV-18-10 | Red | 22-18 AWG | 10 | 1000/pkg | $132.20 | |
| RV-14-6 | Blue
 | 16-14 AWG | 6 | 100/pkg | $14.70 | |
| RV-14-6 | Blue
| 16-14 AWG | 6 | 1000/pkg | $132.20 | |
| RV-14-8 | Blue
| 16-14 AWG | 8 | 100/pkg | $14.70 | |
| RV-14-8 | Blue
| 16-14 AWG | 8 | 1000/pkg | $132.20 | |
| RV-14-10 | Blue
| 16-14 AWG | 10 | 100/pkg | $14.70 | |
| RV-14-10 | Blue
| 16-14 AWG | 10 | 1000/pkg | $132.20 | |
| RV-10-6 | Yellow
 | 12-10 AWG | 6 | 100/pkg | $25.00 | |
| RV-10-6 | Yellow
| 12-10 AWG | 6 | 1000/pkg | $199.00 | |
| RV-10-8 | Yellow
| 12-10 AWG | 8 | 100/pkg | $25.00 | |
| RV-10-8 | Yellow
| 12-10 AWG | 8 | 1000/pkg | $199.00 | |
| RV-10-10 | Yellow
| 12-10 AWG | 10 | 100/pkg | $25.00 | |
| RV-10-10 | Yellow
| 12-10 AWG | 10 | 1000/pkg | $199.00 |
