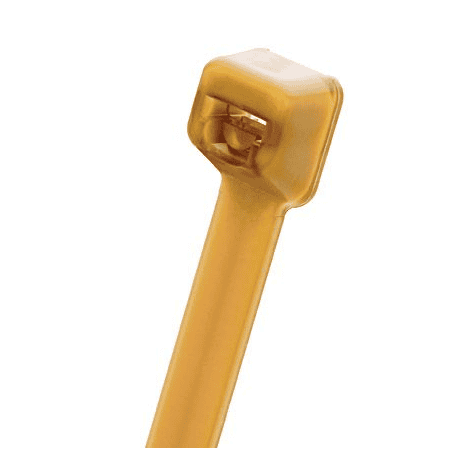

Panduit® 4″ PEEK (18 lb.) : PLT1M-C71
$129.79
100/pkg
Description
Specifications
| Material Description | PEEK (Chemical-Resistant, High Heat-Resistant, Radiation-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Translucent Brown |
| Environment | Indoor |
| Material | PEEK |
| Resistance Properties | Chemical-Resistant, High Heat-Resistant, Radiation-Resistant |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.101 |
| Body Width (mm) | 2.6 |
| Body Thickness (In.) | 0.048 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 156 |
| Minimum Loop Tensile Strength (lb) | 35 |
| Maximum Operating Temperature (°C) | 240 |
| Maximum Operating Temperature (°F) | 464 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | RoHS Compliant |
| Military Cross Reference Number | MS3367-4-16 |
| For Use With | GTS-E, PTS |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
Additional information
| Length | 4" (102mm) |
|---|---|
| Width | .098" (2.5 mm) |
| Bundle Diameter | .87" (22 mm) |
| Min. Loop Tensile | 18 LB |
| Pcs/Pkg | 100/pkg |
| Color | Translucent Brown |
