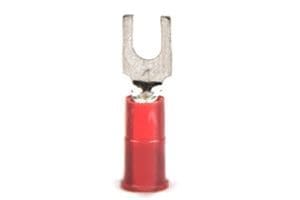

Nylon Insulated Block Spades
Price range: $10.00 through $135.00
With a butted seam, flared, seamless brass sleeve, and a flared, molded nylon sleeve, crimping the barrel and flared portion of the sleeve provides an excellent electrical contact. These nylon insulated block spades have a continuous operating temperature of -40°C to 105°C (-40°F to 220°F). CableTiesPlus offers these nylon block spades in the standard AWG sizes from 12-22 and 3 different stud sizes, 6, 8, and 10, there is a spade for every electrical wiring job.
| SKU | Color | Wire Range | Stud Size | Pkg Contains | Price | Qty |
|---|---|---|---|---|---|---|
| BSN-18-6 | Red
 | 22-18 AWG | 6 | 100/pkg | $10.00 | |
| BSN-18-6 | Red
| 22-18 AWG | 6 | 1000/pkg | $76.00 | |
| BSN-18-8 | Red
| 22-18 AWG | 8 | 100/pkg | $10.00 | |
| BSN-18-8 | Red
| 22-18 AWG | 8 | 1000/pkg | $76.00 | |
| BSN-18-10 | Red
| 22-18 AWG | 10 | 100/pkg | $10.00 | |
| BSN-18-10 | Red
| 22-18 AWG | 10 | 1000/pkg | $76.00 | |
| BSN-14-6 | Blue | 16-14 AWG | 6 | 100/pkg | $11.50 | |
| BSN-14-6 | Blue | 16-14 AWG | 6 | 1000/pkg | $87.00 | |
| BSN-14-8 | Blue | 16-14 AWG | 8 | 100/pkg | $11.50 | |
| BSN-14-8 | Blue | 16-14 AWG | 8 | 1000/pkg | $87.00 | |
| BSN-14-10 | Blue | 16-14 AWG | 10 | 100/pkg | $11.50 | |
| BSN-14-10 | Blue | 16-14 AWG | 10 | 1000/pkg | $87.00 | |
| BSN-10-6 | Yellow
 | 12-10 AWG | 6 | 100/pkg | $18.00 | |
| BSN-10-6 | Yellow
| 12-10 AWG | 6 | 1000/pkg | $135.00 | |
| BSN-10-8 | Yellow
| 12-10 AWG | 8 | 100/pkg | $18.00 | |
| BSN-10-8 | Yellow
| 12-10 AWG | 8 | 1000/pkg | $135.00 | |
| BSN-10-10 | Yellow
| 12-10 AWG | 10 | 100/pkg | $18.00 | |
| BSN-10-10 | Yellow
| 12-10 AWG | 10 | 1000/pkg | $135.00 |
