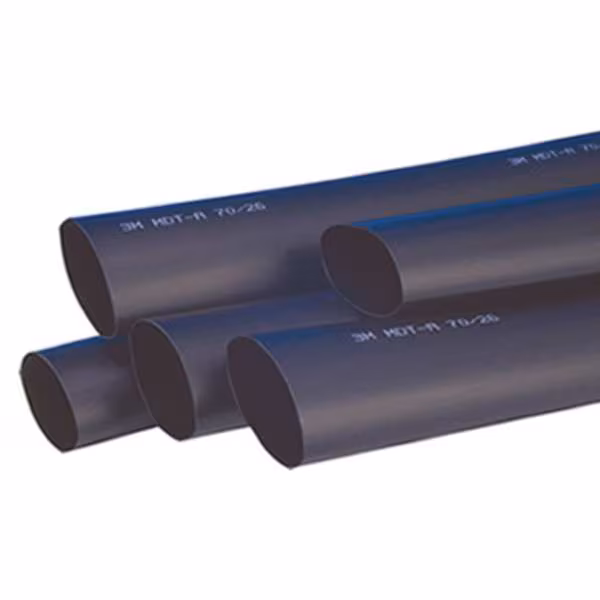

3M™ HDT Heavy-Duty Polyolefin Heat Shrink Tube
$29.95 – $441.70
3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.
| SKU | Color | Length | Expanded I.D. (Minimum) | Recovered Wall Thickness (Nominal) | Price | Qty |
|---|---|---|---|---|---|---|
| HDT-0300-48A | Black | 4 Feet | .30"/7,62mm | .08"/2,0mm | $29.95 | |
| HDT-0300-48A RED | Red | 4 Feet | .30"/7,62mm | .08"/2,0mm | $29.95 | |
| HDT-0400-48A | Black | 4 Feet | .40"/10,2mm | .09"/2.3mm | $31.05 | |
| HDT-0400-48A RED | Red | 4 Feet | .40"/10,2mm | .09"/2.3mm | $31.05 | |
| HDT-0800-48A | Black | 4 Feet | .80"/20,3mm | .11"/2,8mm | $32.85 | |
| HDT-0800-48A RED | Red | 4 Feet | .80"/20,3mm | .11"/2,8mm | $32.85 | |
| HDT-1100-48A | Black | 4 Feet | 1.10"/27,9mm | .12"/3,0mm | $34.30 | |
| HDT-1000-48A RED | Red | 4 Feet | 1.10"/27,9mm | .12"/3,0mm | $34.30 | |
| HDT-1500-48A | Black | 4 Feet | 1.50"/38,1mm | .17"/4,3mm | $48.55 | |
| HDT-2000-48A | Black | 4 Feet | 2.00"/50,8mm | .17"/4,3mm | $63.00 | |
| HDT-3000-48A | Black | 4 Feet | 3.00"/76,2mm | .17"/4,3mm | $84.20 | |
| HDT-4500-48A | Black | 4 Feet | 4.50"/114,3mm | .17"/4,3mm | $168.05 | |
| HDT-6000-48A | Black | 4 Feet | 6.00"/152,4mm | .17"/4,3mm | $245.85 | |
| HDT-7000-48A | Black | 4 Feet | 7.00"/177,8mm | .17"/4,3mm | $441.70 |
Description
3M™ Heat Shrink Tubing HDT is designed to provide reliable performance as well as excellent mechanical and environmental protection. This flame-retardant product
combines the important advantage of easy handling and installation with maximum operating reliability and system protection. The tubing comes with a factory-applied
sealant. This sealant is a heat-activated thermoplastic material that remains soft and flexible over long periods under adverse environmental conditions. During heating the
sealant softens, bonds to underlying surfaces and fills small voids that might be present. When cool, the sealant forms a barrier against water, moisture, dirt and other
environmental contaminants. Heavy-duty tubing is fabricated from specially formulated cross-linked polyolefin, assuring long-term environmental protection. The tubing is also highly chemical, abrasive and split resistant. The tubing is rated for continuous operation at -55ºC (-67ºF) to 110ºC (230ºF).
Minimum shrink temperature is 121ºC (250ºF).
Additional information
| Recovered I.D. (Minimum) | .10"/2,5mm, .15"/3,8mm, .20"/5,1mm, .37"/9,4mm, .50"/12,7mm, .65"/16,5mm, 1.00"/25,4mm, 1.50"/38,1mm, 1.80"/45,7mm, 2.00"/50,8mm |
|---|
